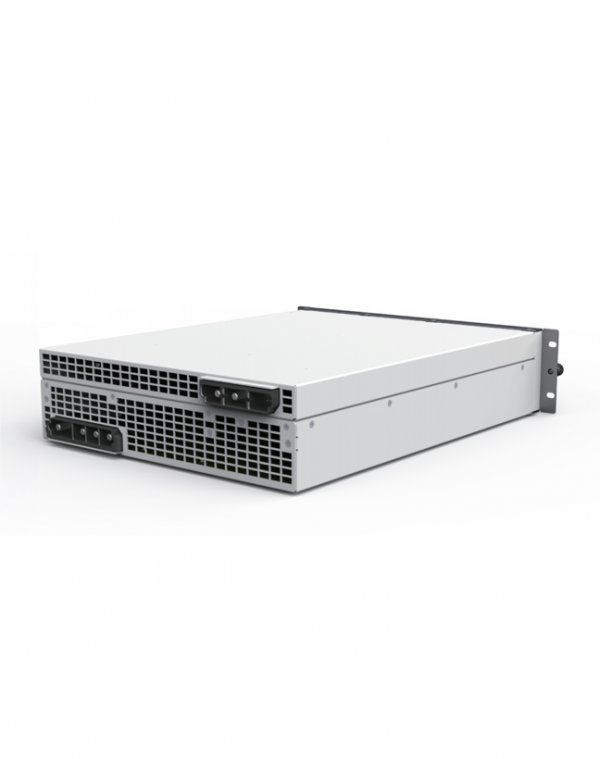

Product descriptions

■ High efficiency, low fan noise, high power density and high reliability

■ 3-phase 4-wire AC input

■DC output voltage range from 150 to 1000 VDC with 30 kW output

■EMC/EMI meets Class B level TUV CE certification and safety meets both TUV UL and CE certification

Characteristics

■ Internal High Frequency Transformer Insulation

■ Full Hot Plug Design

■ TUV CE / UL, KC Certification, EMC Class B level

■ Air duct isolation design for high protection and high reliability against poor environments

■ Wide output voltage range, 150-1000VDC, suitable for a wide range of EVs

■ Constant current for higher output power at lower output voltages

■ Super noise cancellation mode can reduce fan audio noise by 60 dB

■ Internal patent intelligent discharge circuit automatically discharges residual charge to simplify system design

■ Low standby power consumption of 12W; EPO capability for instant output power cut-off

■ Three phases without neutrality eliminate the risk of high neutral current

■ Three-phase active power factor correction technology reduces harmonic interference with the grid

■ Dual DSP design provides full digital control, fewer components mean higher reliability

■ Wide input voltage range, 260 to 530Vac, capable of operating in most poor grid conditions

■ Wide operating temperature range, -40°C -+75°C

■ Modular design, easy maintenance, cost-effective, high power density and high-quality DC chargers for EVs
