Product Introduction

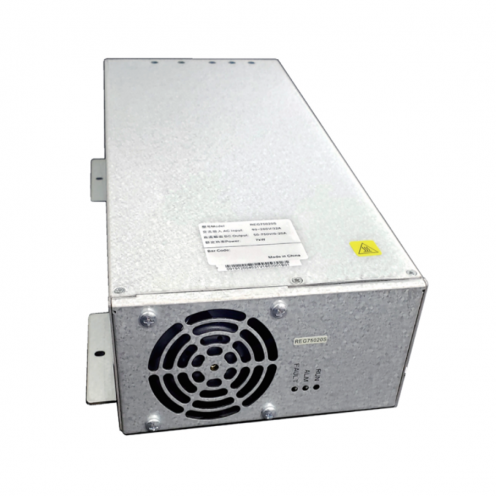

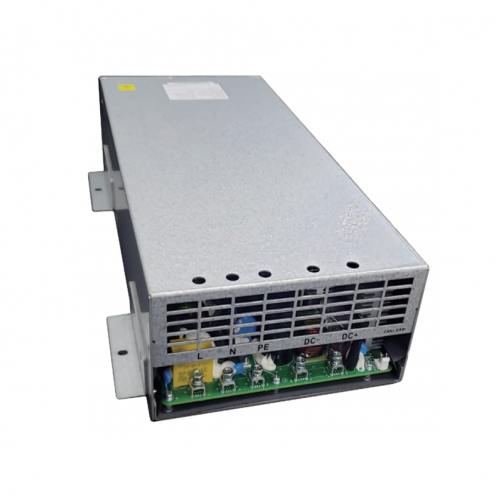

REG75020S is specially designed for EV DC chargers in the single phase commercial grid application. Easily integrated into

the portable charger, high efficiency, high power density and high reliability.

Single phase AC input and DC output voltage range from 150 to 750VDC with constant 7kW output power upper 350V.

Main feature：

■ Special portable application design，easy integration , easy assembly

■ IP20 ，multi protective design，outdoor application consideration

■ High efficiency over the full load range ,full load efficiency greater than 94 %

■ Wide output voltage range,150-750VDC,suitable for a wide range of EVs

■ 7KW constant power output from 350V to 750V

■ Constant current for higher output power at low output voltage

■ From -40°C to 55°C ambient temperature full power output

■ An internal patented intelligent discharge circuit automatically discharges residual charge, simplifying system designs

■ Wide input scale，90Vac～280Vac， fit different grid envirenment

■ Low standby power consumption, less than 8W

Application：

■ Portable EV charger

■ Commercial and Home application with no 3 phase grid
