Product Introduction

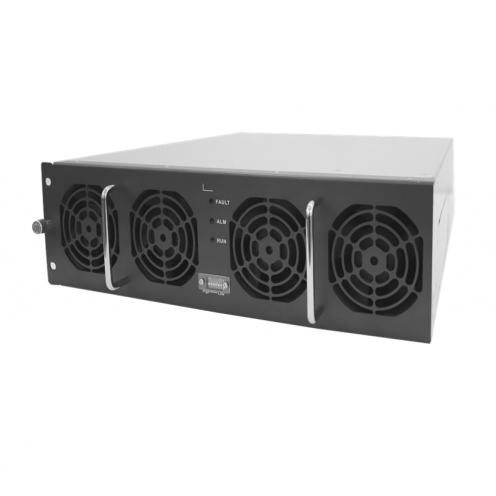

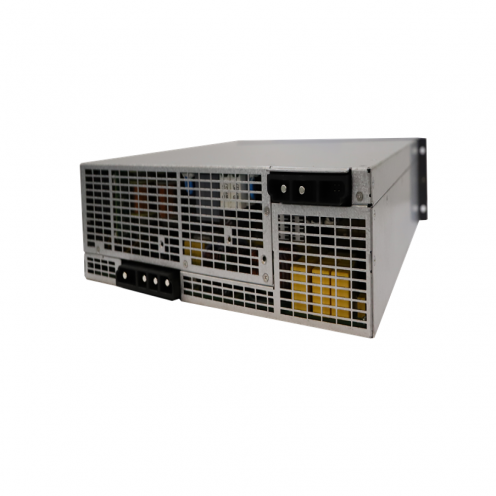

CEG1K0100G is specially designed for EV DC input type chargers. It has high efficiency, low fan noise, high power density and

high reliability advantage. Up to 825V DC input, DC output voltage range is from 150 to 1000VDC with 30kW output power,

EMC/EMI satisfy TUV CE certicification with class B level, and safety satisfy TUV CE certicification.

Main feature

■ Inside high frequency transformer isolation

■ Full hot plug design

■ TUV CE Certicification, EMC class B level

■ Air duct isolation design for high protection and high reliability for harsh environment

■ Wide output voltage range, 150-1000VDC, suitable for a wide range of EVs

■ Constant current for higher output power at low output voltage

■ Super denoise mode can get less 55 dB fan audio noise

■ An internal patented intelligent discharge circuit automatically discharges residual charge, simplifying system designs

■ Low standby power consumption with 12W. Super standy power consumption with 2W.

■ Wide input DC voltage from 300V to 825V DC

■ Dual DSP design, provides the full digital control ,less components means higher reliability

■ Totally compatible with REG1K0100G AC2DC power module in the size, interface and protocol

■ Wide operating temperature range, -40℃--+75℃

Application

■ DC Charger for EV with modular design, easily maintenance, cost efficiency, high power density and high quality

■ DC input Charger
