Product Introduction

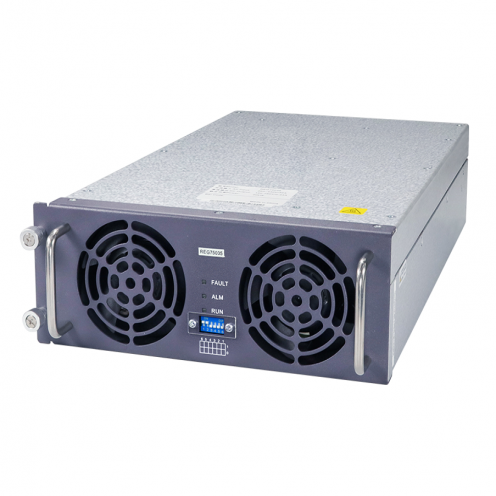

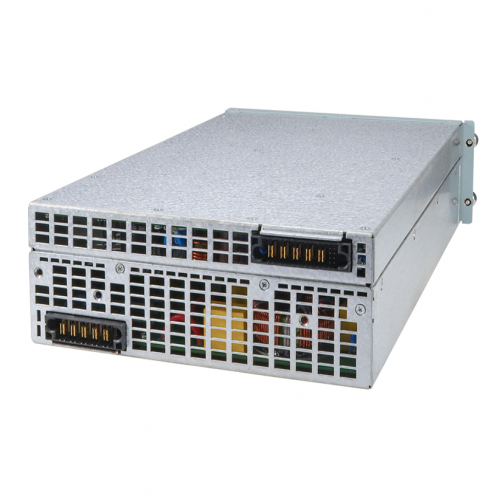

CEG1K025 is the DC input converter , it can been used for EV charger with DC bus input. It has high efficiency, high power

density and high reliability advantage. DC output voltage range from 150 to 1000VDC, 20kW Power. And also integrate the

solar power MPPT function, can input solar power directly.

Main feature：

■ Inside high frequency transformer isolation

■ Full hot plug design

■ DC source input

■ Wide output voltage range, 150~1000VDC, suitable for a wide range of EVs

■ Constant current for higher output power at low output voltage

■ An internal patented intelligent discharge circuit automatically discharges residual charge, simplifying system designs

■ Low standby power consumption, less than 10W

■ Solar power input support, and MPPT function support

■ Dual DSP design, achieve the full digital control ,less components means higher reliability

■ Wide operating temperature range, -40℃~+75℃

Application：

■ DC Charger for EV, with modular design, easily maintenance, cost efficiency, high power density and high quality

■ DC Source power supply for EV Charger

■ Solar power access for the charger.
