Product Introduction：

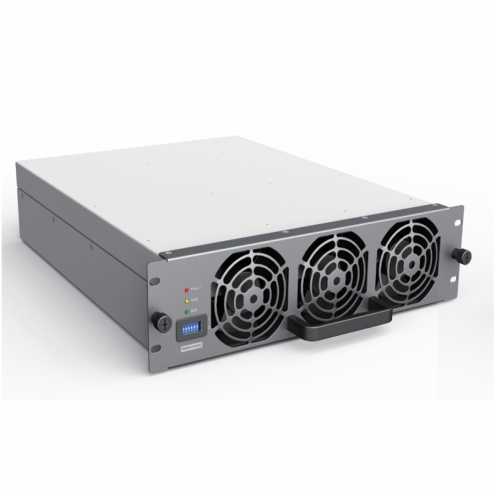

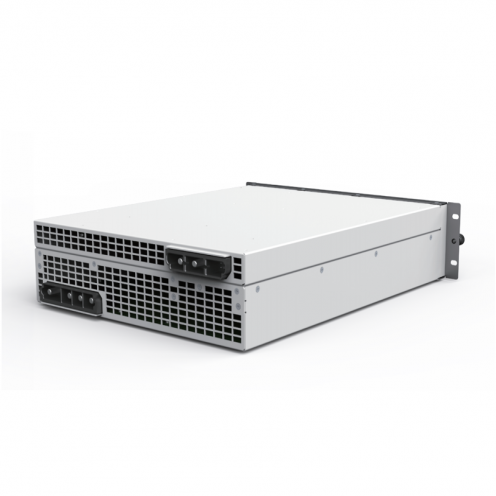

REG1K025 is specially developed for EV DC chargers. It has high efficiency, high power factor, high power density, high reliability advantage.

AC input is 3 phase 4 wire, DC output voltage range from 150 to 1000 VDC, 20KW output Power, compliant with CE safety requirements,

EMC standard , EN61000-6-1 and EN61000-6-3 CLASS A, it is an advanced international level charger module.

Unique function :

■ Wide output voltage range, 150-1000VDC, suitable for a wide range of EVs

■ Constant current provides higher output power at low output voltage

■ An internal patented intelligent discharge circuit automatically discharges residual charge, simplifying system designs

■ High efficiency over the full load range,

■ full load efficiency greater than 95.5%

■ Low standby power consumption, less than 10W

Main features :

■ Constant power from 800V to 1000V

■ 3 phase without neutral eliminates the risk of high neutral currents

■ 3 phase active power factor correction technology, reduces the harmonic interference to the grid

■ Dual DSP design, achieve the full digital control, less components means high reliability

■ Wide input voltage range, 260—530VAC, allows operation in most poor grid conditions

■ Wide operating temperature range, -40℃--+75℃

■ Hot pluggable

■ CAN interface
